# Gaode Maps

## URL

Main site: [www.amap.com](https://amap.com), or [www.gaode.com](https://gaode.com)

API docs: [lbs.amap.com/api](https://lbs.amap.com/api)

## Description

Gaode Maps offers maps, satellite imagery, directions (for driving, public transport, and walking), and real-time augmented reality navigation for driving. It is available via the web browser or as a mobile application. (The app was previously known as AutoNavi, and is currently named AMap outside China.) A few highlights:

* **Global data**: Maps, directions and recommended transport data are available globally, though the data are most detailed for China.
* **Mobile app "AMap Global" available in English**: The English mobile app offers basic functions including map search, satellite imagery and directions in China. (Other functionalities may be limited.)
* Notably, **Gaode Maps** **does not offer street view**.

As for all Chinese mapping tools, satellite imagery is provided by China Siwei Surveying & Mapping Technology, which uses data and imagery from DigitalGlobe, the US company.\
\
**Gaode Maps for iOS and Android users in China**

* Gaode Maps is a [data provider](http://blogs.wsj.com/chinarealtime/2012/09/26/apple-built-special-version-of-maps-for-china/?mod=WSJBlog) to Apple Maps. The Apple Maps app automatically switches to using Gaode Maps data [when the device is in China](https://www.trip.com/guide/phone/apple-map-in-china.html) (e.g., when global iPhone users travel from overseas to mainland China, or when the iPhone is bought in China).
* In many Android phone models sold in China, Gaode Maps is pre-installed instead of Google Maps.

Unless specified, all functions described on this page can be accessed without registering for an account.

<details>

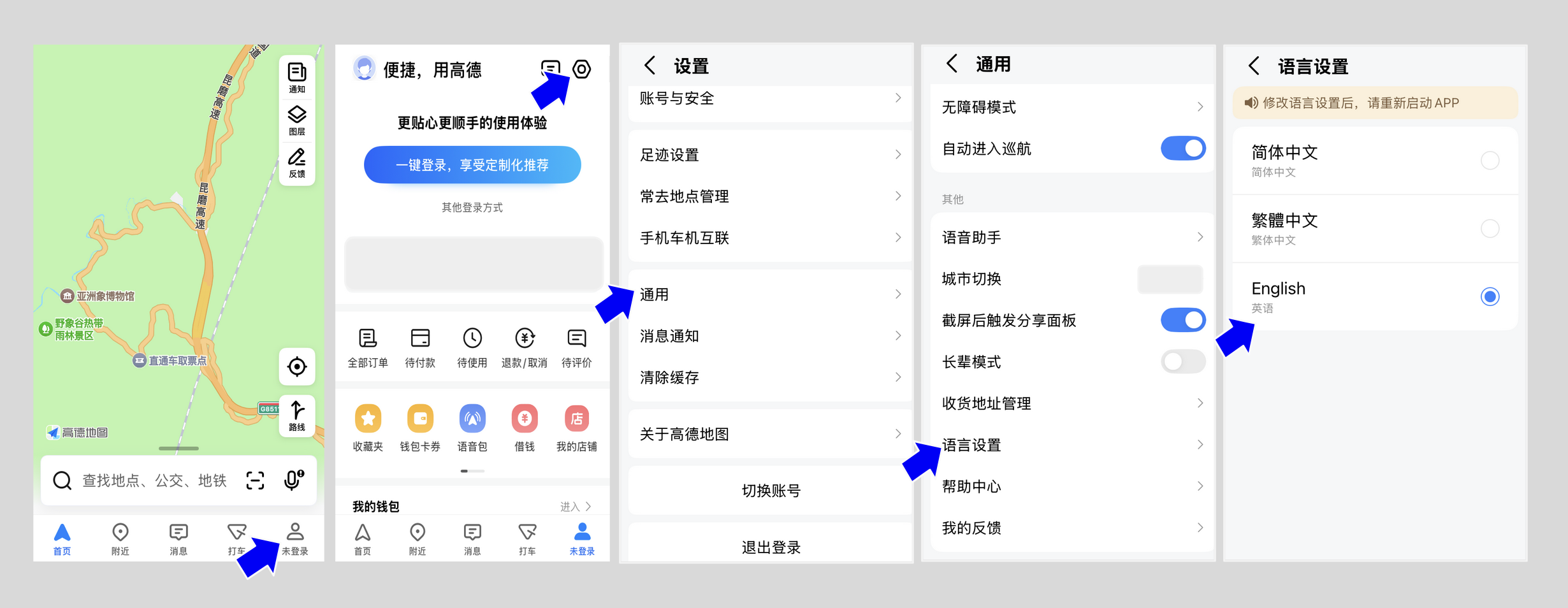

<summary>ⓘ Troubleshooting: If you downloaded the app in Chinese, and need to change the language to English</summary>

<figure><img src="https://1607018381-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFuL0vtRVpXHiKZgFkMFR%2Fuploads%2Fgit-blob-946cc46cdf0eada873fb67739de0a29c020d9586%2Fgaode_english.png?alt=media" alt=""><figcaption></figcaption></figure>

1. Select the user icon (indicated by the blue arrow).
2. Select the settings icon.
3. Scroll to the bottom, select General 通用.
4. Select Language Settings 语言设置.
5. Select English. A pop-up message will ask you to re-start the app for the language to be updated.

</details>

#### Basic search

After searching in [pinyin](https://en.wikipedia.org/wiki/Pinyin) or Chinese characters, select the layer or function.

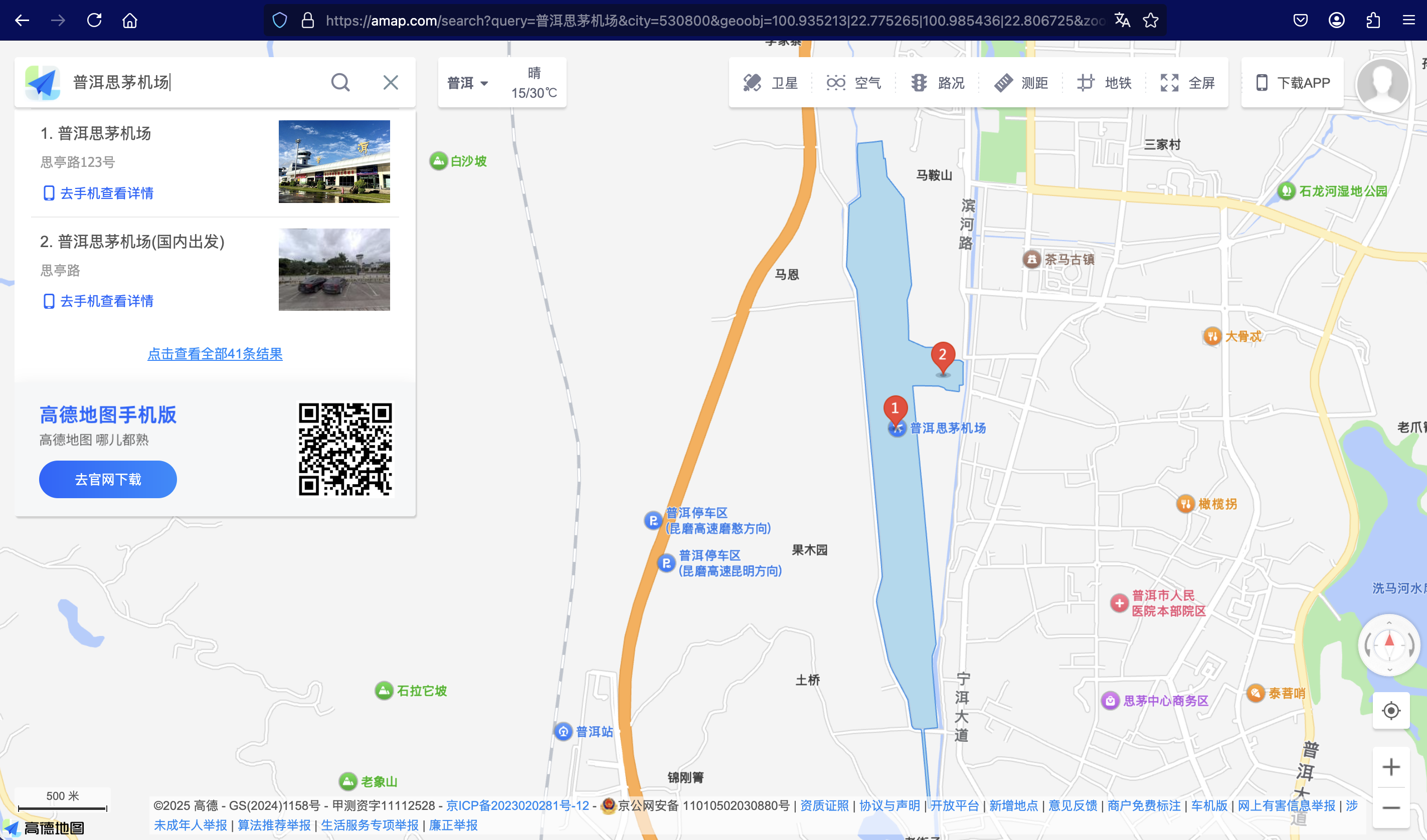

<figure><img src="https://1607018381-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFuL0vtRVpXHiKZgFkMFR%2Fuploads%2Fgit-blob-26582d86bce5dc94c55e7ac4b9b372235c3292fe%2Fgaode_search.png?alt=media" alt="" width="563"><figcaption><p>Web browser view > after searching for a specific location (example: Pu'er Simao Airport, Yunnan)</p></figcaption></figure>

<details>

<summary>Select layers - English annotations</summary>

Here are the layers and functions, annotated in English. Your view may be different depending on your country.\
\

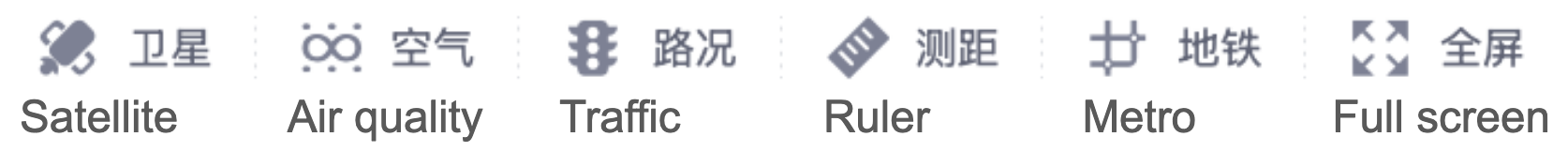

**Web browser toolbar**

<figure><img src="https://1607018381-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFuL0vtRVpXHiKZgFkMFR%2Fuploads%2Fgit-blob-84d6f97b0d849a7a78f63845b6097f9cd2e31108%2Ffunctions_annotated.png?alt=media" alt=""><figcaption><p>Web browser view - select layer or function</p></figcaption></figure>

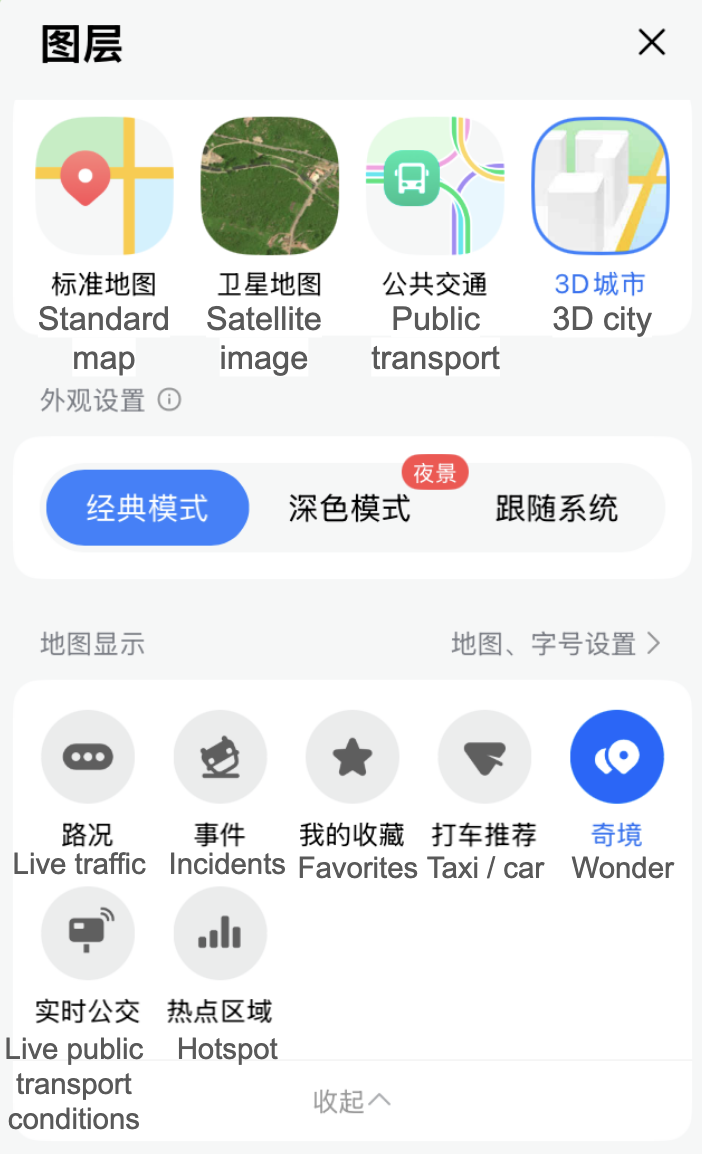

**Mobile view**

<figure><img src="https://1607018381-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFuL0vtRVpXHiKZgFkMFR%2Fuploads%2Fgit-blob-9b82c612cacd86317623321886b46efdb702f295%2Fannotated.png?alt=media" alt="" width="176"><figcaption><p>Mobile view > select layer or function</p></figcaption></figure>

</details>

On the web browser view, a reference number is shown at the bottom left, e.g., GS(2025)1234. The year refers to when the map was approved for publication by China's State Bureau of Surveying and Mapping.

(According to Article 15 of the [*Mapping Administration Regulation,* 2015](https://zh.wikisource.org/wiki/%E5%9C%B0%E5%9B%BE%E7%AE%A1%E7%90%86%E6%9D%A1%E4%BE%8B), all maps for public dissemination must be approved by the relevant government body. [Exceptions are made](https://web.archive.org/web/20180519041828/https://www.scmp.com/news/china/economy/article/2146876/charts-why-chinese-publishers-dont-want-maps-their-books) for maps of tourist destinations and metro lines.)

### No street view available

Gaode Maps does not offer street view (the function was removed several years ago), making the tool less directly useful for geolocation.

<details>

<summary>The "wonder" 奇境 function (aerial photos in select locations)</summary>

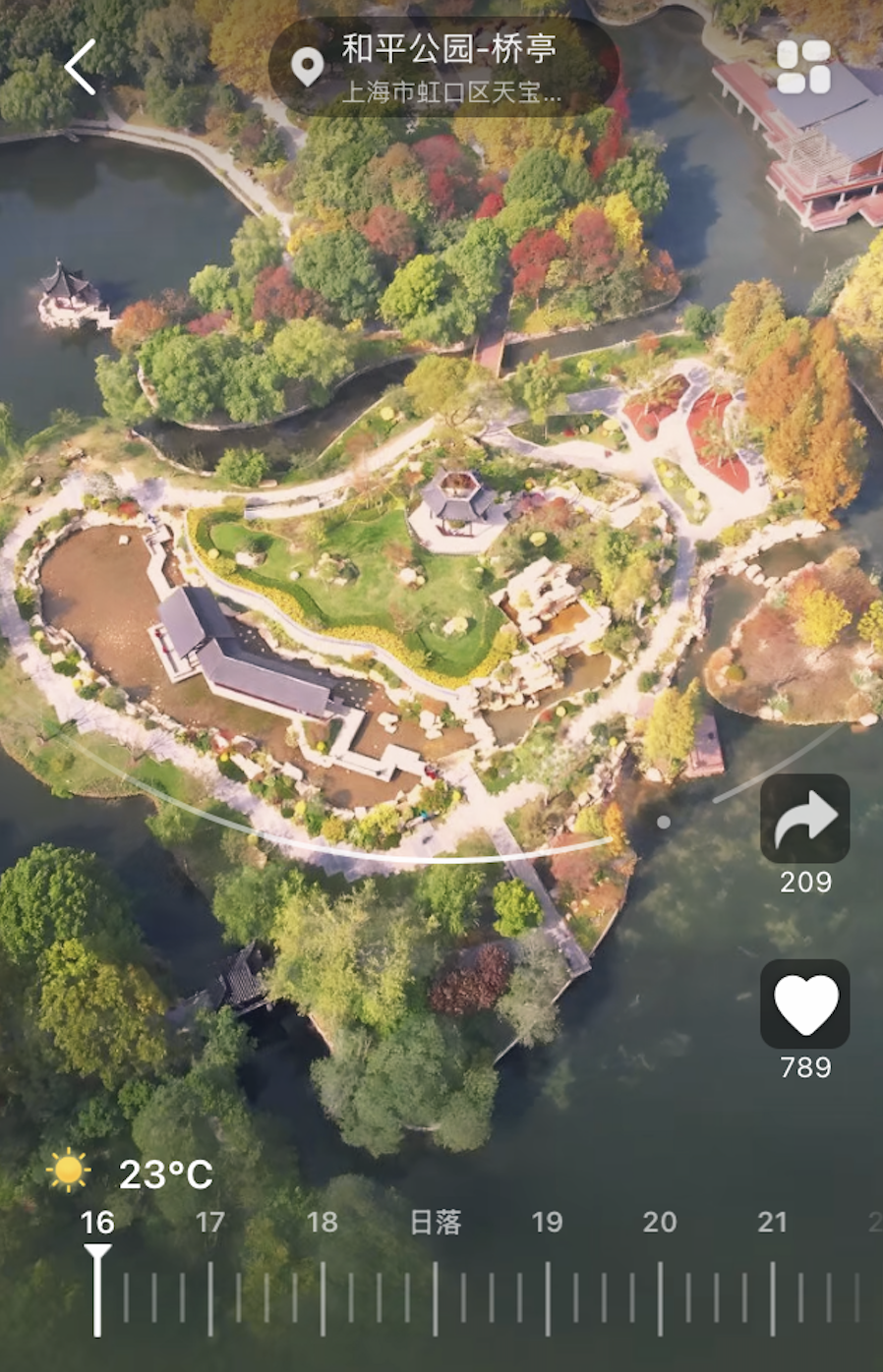

In the mobile app, a function called 奇境 (translates as "wonder", pinyin: *qijing*) is available for select locations, usually scenic places such as parks and tourist sites. The function allows users to view the location during different times of day, weather conditions, or seasons.

<div align="center"><figure><img src="https://1607018381-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFuL0vtRVpXHiKZgFkMFR%2Fuploads%2Fgit-blob-8b59b2893c0efbdd92f8055e965db2111767bc7d%2Fpark.png?alt=media" alt="" width="188"><figcaption><p>Example: When the user moves the slider at the bottom, they can view the location during different times of the day.</p></figcaption></figure></div>

</details>

### Worldwide coverage

The app provides global data for over 200 countries, including street maps, route navigation (driving, public transportation, or walking) and business locations. Here's an example:

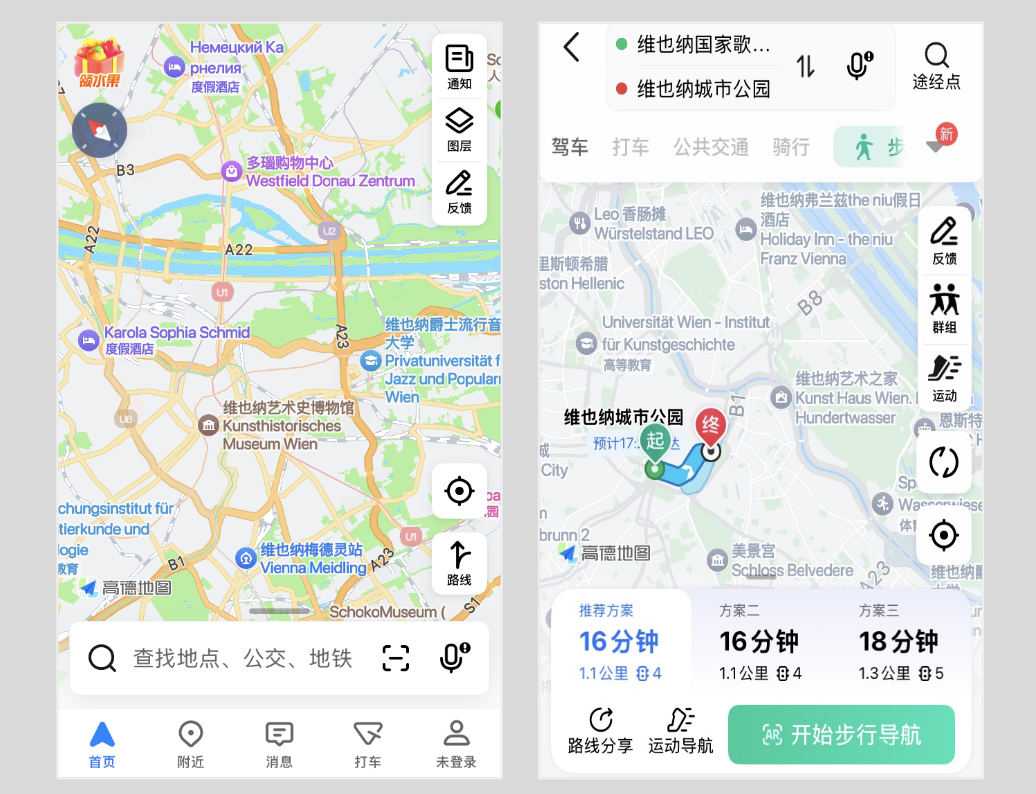

<figure><img src="https://1607018381-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFuL0vtRVpXHiKZgFkMFR%2Fuploads%2Fgit-blob-8daaf03cf90bd49db26d930947fd155db34e97fc%2Foverseas.png?alt=media" alt="" width="563"><figcaption><p>Left: Map in Vienna, Austria. Right: Walking route planning.</p></figcaption></figure>

Business owners from any country could add their locations and information onto AMap (for instance, to attract Chinese travellers who may visit their countries).

### Getting coordinates

Within AMap, if you search for a specific location, the coordinates are shown in the URL, in longitude-latitude format.

For background: China uses a coordinate system called [GCJ-02](https://en.wikipedia.org/wiki/Restrictions_on_geographic_data_in_China#GCJ-02) (colloquially known as Mars coordinates), whereas the rest of the world uses [WGS-84](https://en.wikipedia.org/wiki/World_Geodetic_System) (Earth coordinates). GCJ-02 uses an encryption algorithm to apply random offsets to the latitude and longitude of locations. Obfuscating the geographic data is for [national security purposes](https://en.wikipedia.org/wiki/Restrictions_on_geographic_data_in_China).

If you use Google Maps, the coordinates you obtain for China are already in the GCJ-02 system, though in latitude-longitude format. Please note that in Chinese mapping tools, coordinates are shown with longitude first.\
\

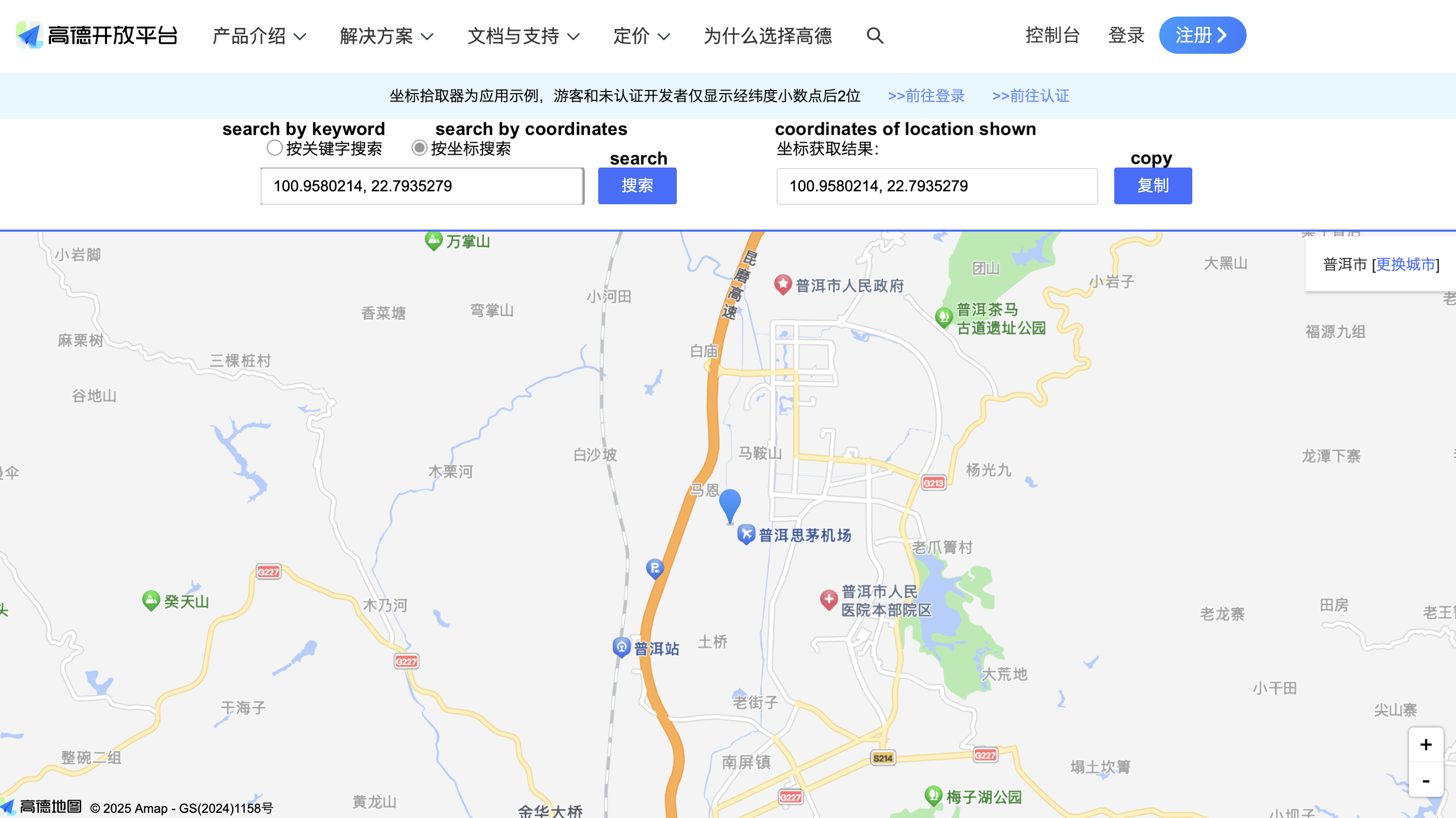

To search for a location in Gaode Maps using coordinates, go to <https://lbs.amap.com/tools/picker>, select the option to search by coordinates, and enter the coordinates in longitude-latitude format.

<div data-full-width="false"><figure><img src="https://1607018381-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFuL0vtRVpXHiKZgFkMFR%2Fuploads%2Fgit-blob-e7d04a3203e8a67170941a1973d35b518abc2672%2Freverse_search.png?alt=media" alt="" width="563"><figcaption><p>Page: <a href="https://lbs.amap.com/tools/picker">https://lbs.amap.com/tools/picker</a><br>Note: Without logging in, a keyword search will only yield coordinates with 2 decimal point only.</p></figcaption></figure></div>

### 3D maps

API documentation for [3D map](https://lbs.amap.com/demo/javascript-api/example/3d/map3d) and [3D model](https://lbs.amap.com/demo/javascript-api/example/3d/3d-model) are available. (Enter coordinates in the code template to see the 3D map of the location you're searching for.)

### User generated reviews

User-generated reviews are available in the mobile app only, without account login.

### Using AMap in English (mobile app only)

The English version is only available as mobile app. In your app store, search "AMap Global", download and install.

Functions not available in the English mobile app:

* Map data from outside of China
* User-generated reviews and photos originally posted in Chinese

## Similar tools

Gaode Maps, using the international branding "AMap", is the only Chinese mapping tool that offers a full English language interface in its mobile version. In comparison, [Baidu Maps](https://bellingcat.gitbook.io/toolkit/more/all-tools/baidu-maps) provides maps globally in its Chinese interface, whereas [Tencent Maps](https://bellingcat.gitbook.io/toolkit/more/all-tools/broken-reference) provides only maps for China.

Gaode Maps does not offer street view imagery. Instead, researchers can see Baidu Maps for a more comprehensive set of street view images, and check Tencent Maps for images from roughly 5 to 7 years prior. Resulting from a [2021 merger between Tencent and Sogou](https://www.techinasia.com/tencent-completes-merger-chinese-search-engine-sogou), older street view imagery captured by SOSO Maps (now defunct mapping tool) was integrated into Tencent Maps.

## Cost

* [x] Free
* [ ] Partially Free
* [ ] Paid

## Level of difficulty

<table><thead><tr><th data-type="rating" data-max="5"></th></tr></thead><tbody><tr><td>1</td></tr></tbody></table>

## Requirements

* **Web:** any modern web browser
* **Mobile:** iOS or Android (or HarmonyOS). Globally available. User accounts can be set up with international phone numbers.
* **API:** Individuals must [register with their real name](https://web.archive.org/web/20230531004539/https://52xlsj.com/gaodeapi), including providing their ID and Alipay account. Individual developer accounts can only be used for educational or nonprofit purposes, and not for commercial purposes. This is strictly enforced. If claiming educational or nonprofit status, users may be asked to provide government-approved supporting documents.

## Limitations

* **No street view**
* **Language barrier**: In the web version, the user interface is only available in Chinese.
* **Barriers accessing the API.** Although not explicitly stated in [Gaode Maps' documentation](https://lbs.amap.com/api/webservice/guide/create-project/get-key), non-Chinese citizens and companies may have difficulty setting up a developer account due to requirements of identification and/or supporting documents.
* **Geographical barriers**: [VPNs are banned in China](https://www.bbc.com/news/technology-30982198) and there are [limited gateways for international internet traffic to interact with Chinese websites](https://www.thousandeyes.com/blog/deconstructing-great-firewall-china). Overseas users may experience slower speeds and more frequent prompts to login.

## Ethical Considerations

* See the Bellingcat toolkit's [About Maps and Satellites](https://bellingcat.gitbook.io/toolkit/more/all-tools/about-maps-and-satellites) page for some general caveats when working with maps and satellite imagery, including a general discussion on censorship and content control.
* Gaode Maps (as seen in its former name AutoNavi) [develops the data and software infrastructure](https://www.alibabacloud.com/blog/amaps-transformation-from-navigation-positioning-to-high-precision-positioning_596546) needed to [support internet connected cars](https://www.caixinglobal.com/2019-08-30/chinas-gaode-map-teams-up-with-automakers-in-ride-hailing-services-101456629.html). Such surveying and mapping data are [increasingly considered sensitive and protected information](https://www.kwm.com/cn/en/insights/latest-thinking/compliance-risks-of-surveying-and-mapping-for-intelligent-connected-vehicles.html) in China.
* **Privacy Concerns**: Like many mapping services, Gaode Maps gathers user data, raising concerns about user privacy. (An [April 2021 notice from the Cyberspace Administration of China](#url) named all leading Chinese mapping tools among 33 apps for extensively collecting user data, beyond what is relevant to their service provision.)

## Tool provider

Alibaba Group [https://www.alibabagroup.com](https://www.alibabagroup.com/en-US/) - China

## Advertising Trackers

* [ ] This tool has not been checked for advertising trackers yet.
* [x] This tool uses tracking cookies. Use with caution.
* [ ] This tool does not appear to use tracking cookies.

| Page maintainer  |
| ---------------- |
| Author: River N. |
|                  |
