OpenAerialMap
Platform for accessing open-licensed satellite and unmanned aerial vehicle (UAV) imagery
URL
Description
OpenAerialMap (OAM) is a platform providing open access to a wide range of satellite and aerial imagery, including high-resolution (10-30cm resolution) imagery captured by unmanned aerial vehicles (UAV). Potential use cases for open-source researchers include:
Change detection, e.g., identifying new construction, damage or shoreline changes.
Geolocation
Mapping of humanitarian or weather events
Note that OAM provides static imagery that can be aligned onto a map layer. This is not a platform for accessing drone videos.
Anyone can upload aerial or UAV imagery to OAM. Through various initiatives, OAM imagery have been provided by humanitarian organizations, drone operators (including individuals), satellite imagery providers, and government surveying agencies. All imagery are publicly licensed, and should be attributed to the Open Imagery Network (OIN) of the Humanitarian OpenStreetMap Team. See Licensing information on the About page.
Compared to aerial imagery captured by aircraft, UAV (or drones) fly at lower altitudes, allowing granular close-ups of small, specific sites. However, UAV imagery will be limited in range and weather conditions.
OAM - Basic navigation

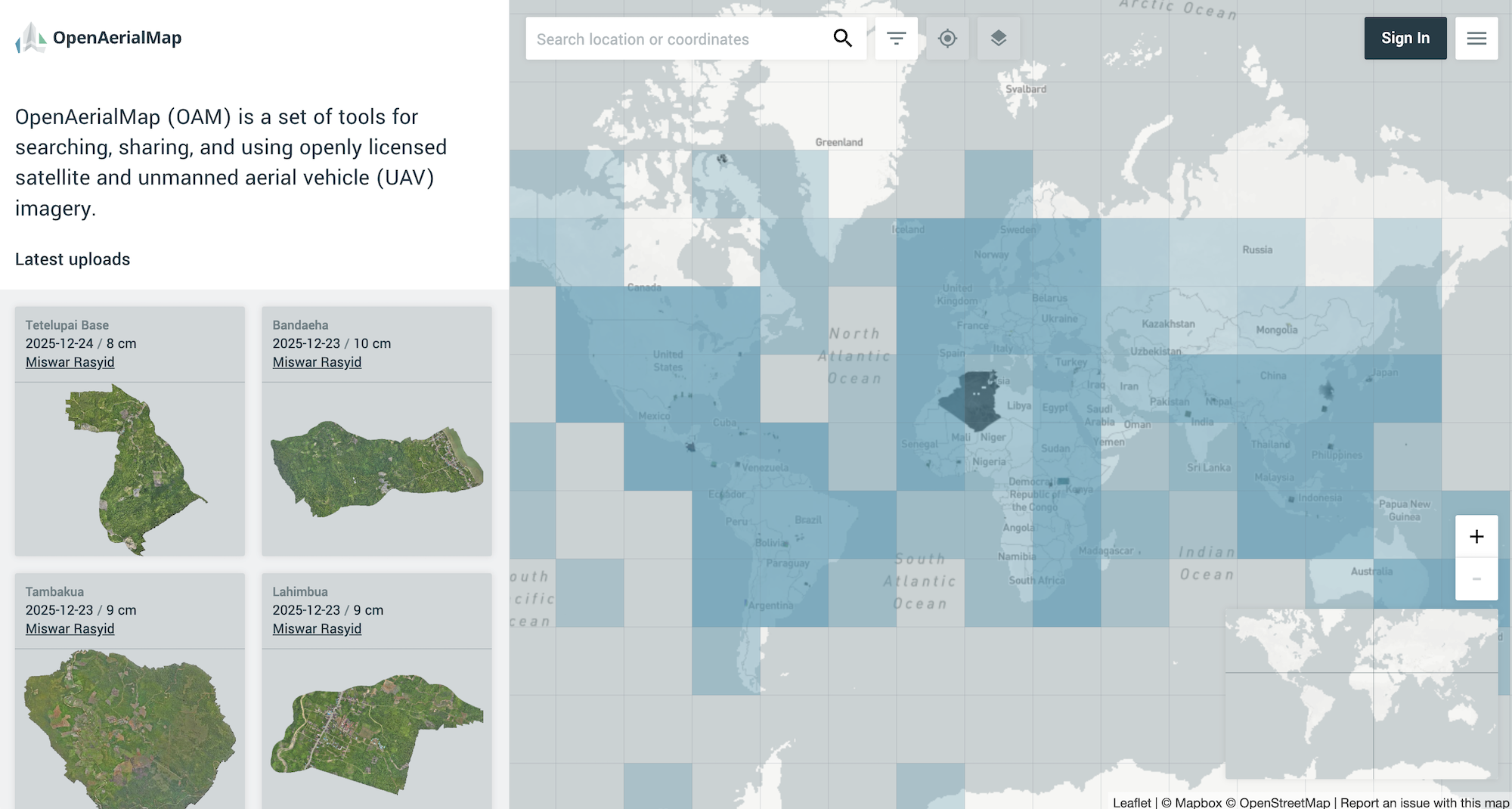

On openaerialmap.org, click “Start Exploring”. The interface will display a world map in a grid. Darker-color squares indicate a larger number of images available. If you know the specific location you are checking, enter the coordinates in the search bar.
Alternatively, pan and zoom into your area of interest, or click on the relevant part of the grid.
Latest uploads are also displayed on the sidebar (left side).
Note: Searching by entering keywords in the search bar is not recommended, as this may yield irrelevant or incomplete results (or no results). This is because the search term (e.g., country name) may not appear in the text metadata of the imagery. Also imagery metadata can be in languages other than English.

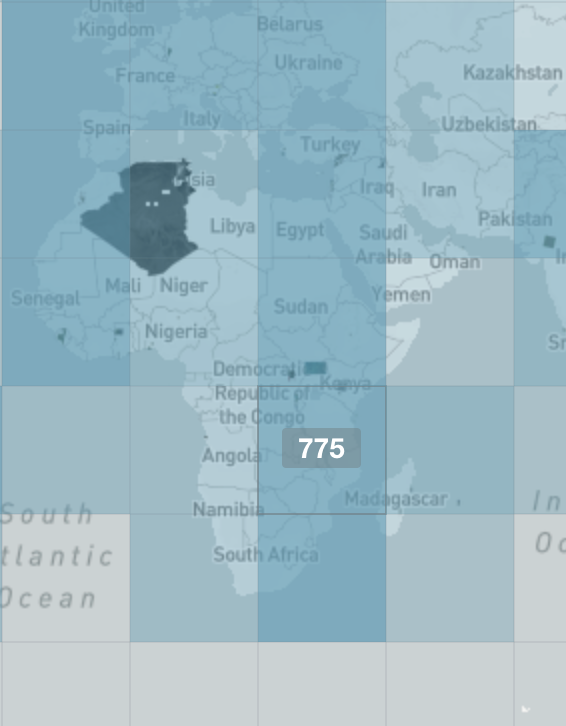

From the world map, when hovering over a grid, a number will be shown to indicate how many images are available in that tile. Below, there are 775 images available in that area of the grid. Click to see those available images in the sidebar, shown as tiles of colored polygons.
Viewing the imagery in the browser

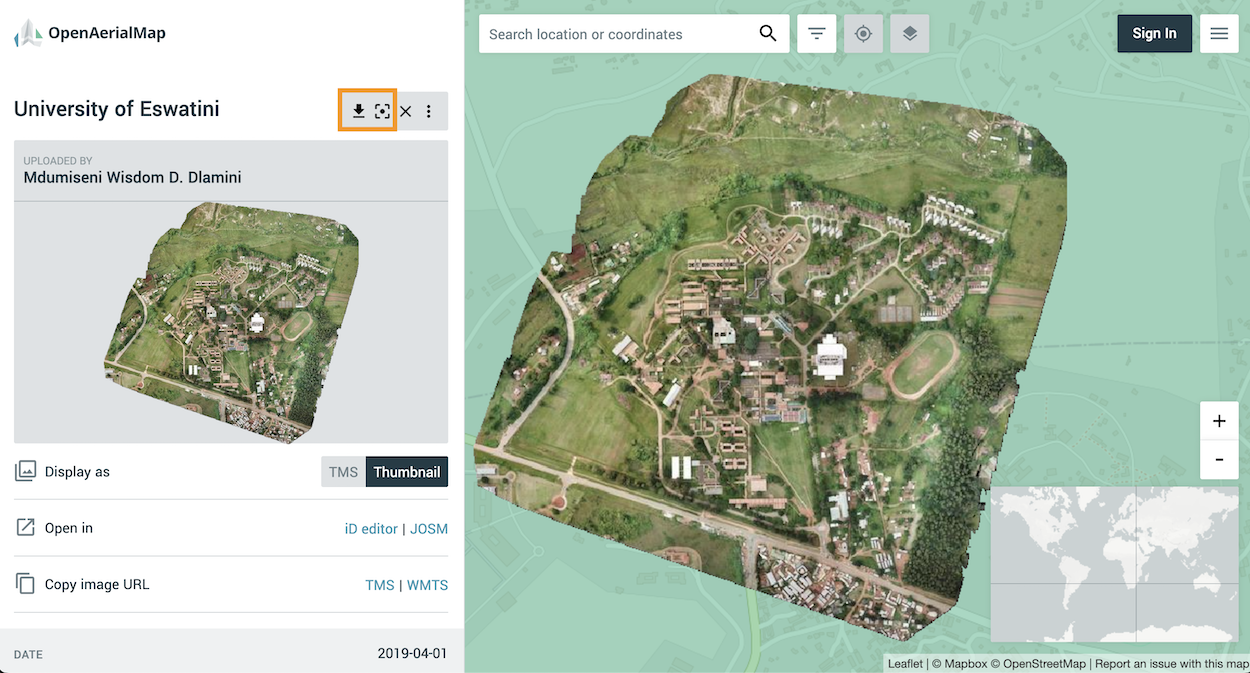

An example image is shown below.
Marked in the orange rectangle, click the download button (left) to download the raw .tiff file. Or click the zoom button (right) to fit the imagery on the screen. The imagery is aligned to the map layer.
Tips:
Coordinates can be found in the URL. For example, the above image's URL is: https://map.openaerialmap.org/#/31.307988166809082,-26.4788802356307,16/square/300301322/5ca678b9b21ec90007944d55 Thus the coordinates are: 31.307988166809082, -26.4788802356307 When entering into OpenStreetMap or Google Maps, enter these coordinates in the reverse order, i.e., -26.4788802356307, 31.307988166809082.
If you are on a slow internet connection, the high-resolution imagery can take 30 seconds or longer to load on the browser. While waiting, you may be shown a message saying that "0 imagery is available".
Metadata shown on the sidebar will include:
Date of capture
Image resolution (in cm)
Sensor — meaning the type of equipment (e.g., UAV model) used for image capture
Source, attribution and license type (e.g. CC-BY-4.0 or other open licenses)
Using OAM imagery in QGIS
Using TMS (Tile Map Service) data
TMS data are large photos pre-cut into small, fixed-size squares (tiles, often 256x256 pixels) and organized in a zoomable pyramid. The simpler structure allows fast, efficient web delivery and display.
Click "TMS" to copy the URL.
Step-by-step guide
[insert image]
Add a New XYZ Tile Connection
Go to the Browser panel (on the left side of QGIS). Right-click on XYZ Tiles and select "New Connection...".
Enter TMS Connection Details
In the dialog box, give your connection a name (e.g., "Location - aerial imagery").
Enter the TMS URL in the URL field, using the format provided by your TMS provider (e.g.,
https://{server}/{z}/{x}/{y}.png). You may need to adjust the y-axis.
Save and Add the TMS Layer
To save, click OK. To add the TMS layer, either double-click the new connection in the Browser panel > XYZ Tiles, or drag it onto the map canvas. The aerial imagery tiles will now appear as a background layer on your QGIS map.
Adjustments and trouble-shooting
If needed, use the Layer Properties to adjust display settings, opacity, or coordinate reference system.
Using WMTS (Web Map Tile Service) data
WMTS is more complex, with features including discovery, standardized metadata, and support for interoperability across different GIS systems.
Click WMTS to copy the URL from OpenAerialMap.
Step-by-step
Go to Layer > Add Layer > Add WMS/WMTS Layer (globe icon), or open the Data Source Manager and select WMS/WMTS.
Click New to create a new connection. Enter a name for the connection and paste the WMTS URL.
Click OK to save, then click Connect to load available layers or tilesets.
Select your desired layer, verify the Coordinate Reference System (CRS) and image format (PNG/JPEG), then click Add.
The WMTS layer should now appear in your Layers panel and display on the map.
Cost
Level of difficulty
Requirements
Any modern web browser.
Login is not required to access the imagery. (A user account is needed for API access and for uploading new imagery.)
Limitations
Coverage: Not all locations will have up-to-date or high-resolution imagery.
Licensing: Most content is openly licensed under Creative Commons, but some datasets may have attribution or use restrictions; check the metadata.
Delay: Compared to low-res satellite imagery, there may be a significant delay between drone image capture and upload to the platform.
Data accuracy considerations: Researchers should be aware that drone imagery could have been uploaded with inaccuracies in date/time stamps and GPS coordinates. Inaccuracies can be caused by GPS drift, firmware bugs, incorrect software settings, or manual input errors, leading to misalignment. As always, researchers should inspect images for missing data or corruption, and use checkpoints (known points not used in processing) to verify the image-to-map accuracy.
Ethical Considerations
Privacy considerations: Given the high resolution of drone imagery, where the imagery covers human activities or large public gatherings, researchers would need to be mindful of privacy considerations. This is particularly relevant if they need to reuse or republish part of the drone imagery.
Guides and articles
Documentation and official blog
Guides
(Oct 23, 2023). Simple GIS Software Tutorials - Displaying OpenAerialMap Imagery in Simple GIS Client, https://www.youtube.com/watch?v=woDsyAQQMko (Feb 16, 2024). Download High-Resolution (1 cm to 30 cm) Aerial Images from Open Aerial Map for Free, https://www.youtube.com/watch?v=R0QDzChfJ-0
(Mar 1, 2023). Search and Visualize OpenAerialMap Imagery Interactively with Leafmap, https://www.youtube.com/watch?v=P51j9robY98
Tool provider
Humanitarian OpenStreetMap Team (HOT), United States.
Similar tools
DJI SkyPixel: DJI's community platform SkyPixel has drone imagery publicly available and searchable. However, the metadata may be incomplete, especially the coordinates shown may not allow researchers to easily map a drone video to the map. Coverage also tends to be focused on scenic locations and tourist sites. For those who need to reuse or republish imagery, there may be licensing or usage rights issues.
OpenTopography: If the research involves checking elevation, OpenTopography offers high-resolution point cloud datasets or LiDAR data covering more than 500,000 km² globally. However, users would need to have experience loading large datasets, and reading and interpreting LiDAR data.
The website has a graphical user interface where users can request the dataset they need — users will specify the location (coordinates or indicate on map), data output type (e.g., ARC ASCII Grid, GeoTiff), and the type of visualization needed. The DEM (Digital Elevation Model) from LiDAR data will then be available for download.
Environmental monitoring purposes: Global Forest Watch currently offers low resolution Sentinel-2 (10m res) & Landsat 8 (30m res) imagery for near real-time checks. See the Bellingcat Toolkit guide to Global Forest Watch here.
National portals of geodata: At the national level, sites such as the USGS Earth Explorer or UK Environment Agency’s LIDAR portal have some aerial imagery, but usually from aircrafts and not from UAVs.
For historical research: local governments and societies may have archives of satellite and aerial imagery. For example, Scotland's National Collection of Aerial Photography (NCAP) is developing an Air Photo Finder (https://airphotofinder.ncap.org/homepage; in beta and subject to subscription), which will feature historically significant aerial photos dating back to the 1920s.
